Dji T50 Agricultural Remote Controller Dji RC Plus Dji Agras Drone Farming Drones

1.Product Description

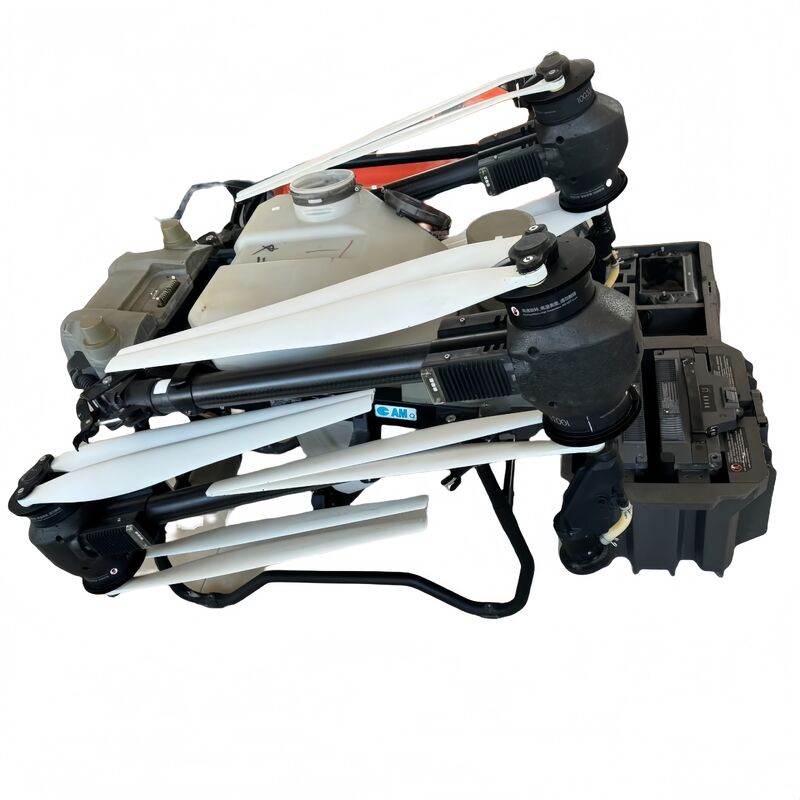

DJI T50 is a high-efficiency and all-round agricultural drone, integrating spraying and spreading. It is equipped with dual active phased array radar and binocular vision system to realize all-terrain intelligent ground-like flight. The sowing load of up to 50 kilograms and the spraying box of 30 liters, combined with the new dual centrifugal nozzle and intelligent map system, can accurately complete fertilization, sowing, plant protection and other operations, greatly improving agricultural efficiency and intelligence.

2.Product Technical Parameters

1,Dimensions (Unfolded): 2115 × 2115 × 810 mm (L × W × H)

2,Dimensions (Folded): 1225 × 780 × 810 mm (L × W × H)

3,Unloaded Weight: Approx. 23.5 kg (without battery)

4,Max Takeoff Weight: 101.5 kg (with spreading system)

5,Spraying System: 30 L tank

6,Spreading System: 50 L hopper / 50 kg

7,Spraying: ≤ 27 L (to prevent sloshing)

8,Spreading: ≤ 50 kg (or full hopper)/

9,Propulsion System:Axial folding dual-rotor system

10,Generator model:D12000iEP All-Round Frequency Conversion Charging Station

11,Maximum power:12kW

12,Fuel Type:Unleaded Gasoline

13,Fuel tank volume: 30L

14,Charging time: 9-12 minutes

15,Charger model: C10000 smart charger

16,External dimensions:400×266×120 mm

17,Weight:13kG

18,Rated power:9000W

19,Charging time:9-12 minutes

20,Recommended Battery: DJI DB1560 Intelligent Flight Battery (30000 mAh)

21,Nozzles: New dual centrifugal nozzles

22,Spraying Width: Max. 11 m

23,Flow Rate Range: 0.4 - 6.0 L/min

24,Max Spraying Flow Rate: 40 L/min

25,Pump Type: Magnetic drive impeller pump

26,Spreader Disc Speed: 100 - 1000 rpm

27,Spreading Width: 4 - 10 m (material dependent)

28,Max Spreading Flow Rate: 60 kg/min

29,Feeding Mechanism: Auger screw + centrifugal disc

30,Forward: Binocular Vision System

31,Backward: Monocular Vision System

32,Downward: Binocular Vision System + Night Illumination/

33,Omnidirectional: Dual Active Phased-Array Radars (Fwd & Aft)

34,Effective Sensing Range: 1 - 50 m

35,Terrain Follow Height: 1 - 15 m (Radar), 3 - 15 m (Vision)

36,Max Terrain Follow Slope: ± 45°

3.Product Specifications

4.Product Advantages

1. Battery Capacity
The T50's 30000mAh high-capacity battery supports long-endurance operations, enabling fewer battery swaps and greater coverage per sortie for large-scale farms.

2. Generator Charging Time
With a compatible DJI generator, the battery can be rapidly charged in the field, achieving a full charge in approximately 9-10 minutes for minimal operational downtime.

3. Charger Charging Time
The high-power charging station can fully charge a T50 battery in about 9-10minutes, allowing for quick turnaround and continuous, high-intensity flight operations.

4. Spreading/Spraying Speed
It achieves a max spraying flow rate of 40L/min and a spreading rate of 60kg/min, enabling exceptionally fast and efficient coverage of large field areas.

5. Remote Control Intelligence
The DJI RC Plus features a bright, intuitive interface for automated planning and AI assistance, making complex operations simple and accessible for all skill levels.

5.Product Detail Display
