Industrial Enterprise Drone Original New Dji Mavic 3TA Universal Edition Uav Drone

Original New Dji Mavic 3TA Universal Edition Uav Drone

1.Product Description

The DJI M3TA is a compact, all-weather drone built for professional efficiency. Its standout feature is a 4/3 CMOS wide camera paired with a 1/2-inch tele camera, enabling high-resolution 48MP photos and 4K/120fps video. This dual-camera system offers powerful hybrid zoom for detailed remote inspection. Advanced features include a 45-minute flight time, omnidirectional obstacle sensing, and an O3 Pro transmission system with 15 km range. Its IP45 rating ensures operation in light rain.Industrially, it excels in critical sectors. For infrastructure, it conducts close-up inspections of cell towers, power lines, and bridges. In energy, it monitors oil rigs, solar farms, and wind turbines safely. Public safety teams use it for search & rescue, firefighting reconnaissance, and accident scene mapping. Construction professionals leverage it for rapid surveying, progress tracking, and creating detailed 3D models, streamlining project management and reducing site risks.

2.Product Technical Parameters

1,Bare machine weight (with blades):DJI Mavic 3T:920g

2,Maximum take-off weight:1050g

3,Size:Folding (with no paddle): length 221 mm, width 96.3 mm, height 90.3 mm

4,Unfold (withless paddle): 347.5 mm long, 283 mm wide, 107.7 mm high

5,The maximum rising speed:8 meters/second (sports gear)

6,The maximum descending speed:6 meters/second (sports gear)

7,Maximum take-off altitude: 6000m

8,The longest flight time:45 minutes

9,The longest hover time:38 minutes

10,Maximum battery life:32 kilometers

11,Image sensor:1/2" CMOS, effective pixels 48 million

12,Camera lens:Equitant focal length: 24 mm

13,ISO scope:100 to 25600

14,Photo shooting mode:Single shot: 12-megapixel/48-megapixel

15,Telephoto camera:1/2" CMOS, effective pixels 12 million

16,Thermal imaging camera:Uncooled vanadium oxide (VOx)

17,Temperature measurement method:Point/regional temperature measurement

18,Digital zoom:28 times

19,Infrared wavelength: 8 microns to 14 microns

20,Yuntai: Three-axis mechanical gimbal (pit, transverse roll, translation)

21,Type of perception system: Omni-way binocular vision system, supplemented by infrared sensor at the bottom of the fuselage

22,Picture transmission scheme: DJI O3 Picture Biography Industry Edition

23,Battery capacity: 15.4V/17.6V  5000mAh  77wh

3.Product Specifications

 4.Product Advantages

1,Imaging system: For the first time, the three major cameras of wide-angle, telephoto and thermal imaging are highly integrated into small industrial drones. The resolution of the thermal imaging camera is 640×512, which supports 28x linkage zoom; the telephoto camera has 7x optical zoom and 56x hybrid zoom capability, which can efficiently complete long-distance clear shooting.

2,Range and image transmission: the longest flight time is 45 minutes, the longest image transmission distance is 15 kilometers, and 4G enhanced image transmission is supported to ensure signal stability in complex environments.

3,Operation efficiency: Through continuous zoom and fast drawing function, the inspection efficiency can be greatly improved (such as the distribution network inspection efficiency can be improved by nearly 60%), and it is compatible with the Dajiang Sikong 2 cloud platform to realize team information coordination.

4, Extended function: It can be equipped with a high-volume shouter, which supports text-to-speech and recorded shouting; with hidden mode and data localization functions to meet special operation needs

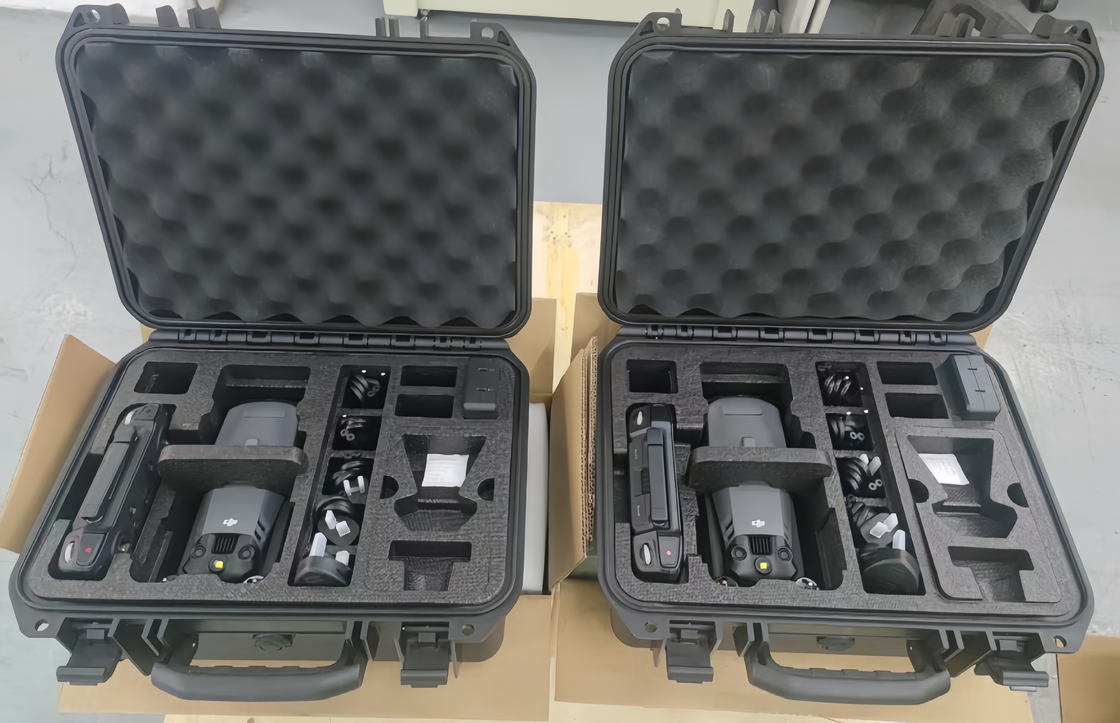

5.Product detail display
